Based on experience, the height of TONI's wire systems is set at 110 mm, the ideal height for deterring pigeons and other birds of similar size. However, this height can be adjusted for any species of concern.

Important features of wire systems

Wire systems consist of one or more thin (0.54mm) stainless steel wires attached by springs to steel pins, which are in turn secured to a base. An additional wire set at a lower height prevents birds from flying underneath the system.
The wires are set taught enough that birds cannot fit between them, but not so tight that they can perch on top of them. When the only two options are becoming entangled or being unable to balance, birds have no choice but to land elsewhere.

Changing the number of wires allows the system to cover various widths of potential perches, ranging from pipes, gutters and handrails to broad eaves.

Wire systems are suitable for medium to heavy populations of birds.

Additional options

• Our combination system can be used for long spaces of 15 m or more. This system is the most popular and the best suited for spaces such as attics and ceilings.


Versions

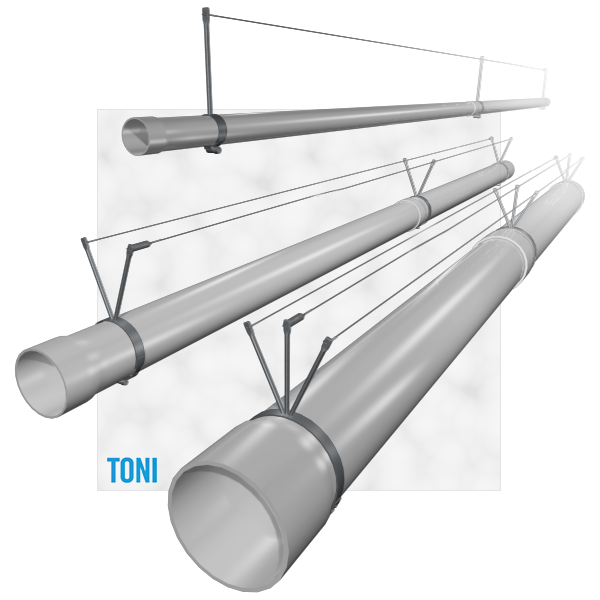

• The pipe clamp wire system was developed for railings, drainage pipes, and other round fixtures which are used by pigeons and other birds for nesting and roosting.

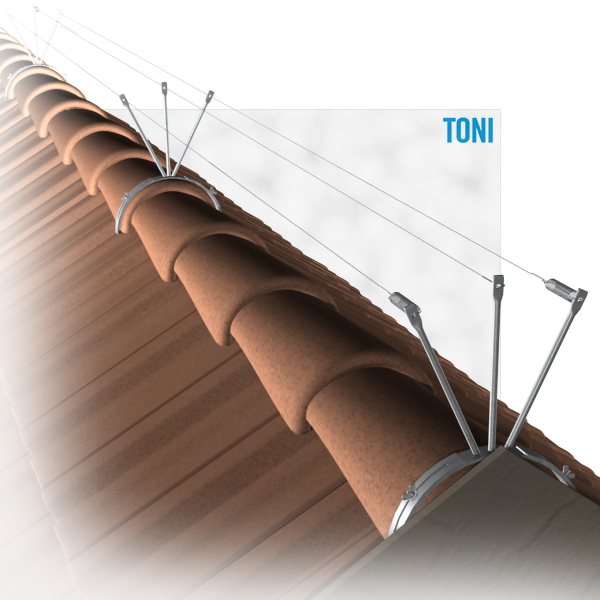

• TONI also offers a special wire system for roof ridges, which attaches directly to the roof tiles.

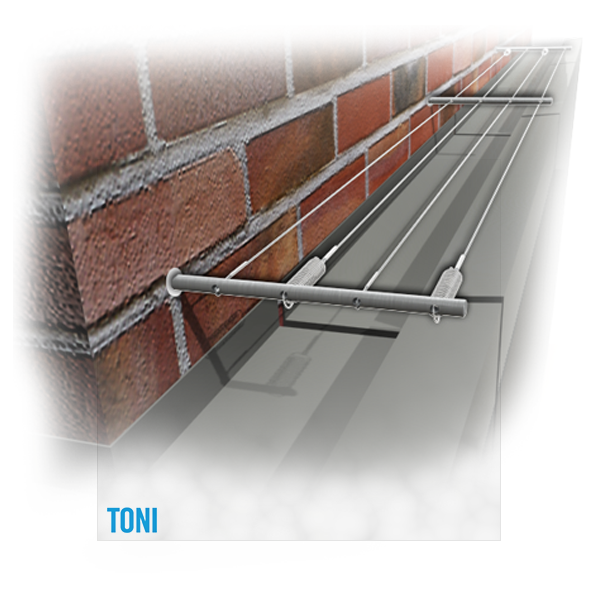

• Stainless steel supports are available for certain surfaces that can be mounted directly into the side wall.

Versions of stainless steel wire systems

Wire systems for railings and pipes

Special wire system for roof ridges

Special wire system for mounting directly into side wall

With detailed designs, custom fittings can be made for almost any structure

Pros

• Inconspicuous
• Highly effective

• Stainless steel makes the wire assembly long-lasting and strong

• Can be installed on a wide variety of shapes and types of substrate.


Cons

• Mounting pins require drilling directly into underlying surface for installation

Referenceprojects

+ Pictures

State Museum of Mainz: stainless steel wire system

In the framework of renovating the State Museum of Mainz parapets and surrounding beams were protected with a multiple row wire system. The multiple rows of the system ensure complete protection and prevent birds from settling in the open space behind a shorter system.

+ Pictures

Klauser Wuppertal: stainless steel wire system

Our proven stainless steel wire system effectively prevents bird intrusion. A three row system was selected to protect the attics and window sills. Corner pieces ensure all-round protection.

+ Pictures

University of Düsseldorf: stainless steel wire system

The wire system protects the edges of the attics from bird intrusion. A three-row system was chosen.

+ Pictures

Goldbeck facade Mannheim: custom-made product

stainless steel wire system

The customer had a strict specification for the wire system. The system was to prevent the intrusion of pigeons and also protect the guttering. This could not be realised with a standard system.

We therefore developed the standard wire system further and adjusted both the height and thickness to the increased tensile stress.

Several hundred metres of facade could then be effectively protected.

+ Pictures

Exhibition Hall Frankfurt: Special Product Stainless Steel Wire System

The entrances of the new Exhibition Hall 11 in Frankfurt are suitable for pigeons flying in. In particular, the birds roost on the air conditioning directly behind the facade.

The challenge was to develop a system that on the one hand functions and on the other integrates harmoniously with the optical characteristics of the building.

The result is a multi-row stainless steel wire system that is anchored sideways in the soffits.

+ Pictures

E.On Academy Düsseldorf, stainless steel wire system

A multiple row stainless steel wire system was fitted exactly to the form of the window sills. Stainless steel pins were used. A possible alternative is also the direct anchoring of the wire system into the window reveals.

+ Pictures

Waste management company: wire system as shield

For handrails stainless steel wire systems can be successfully installed as a shield. A risk of injury does not exist.

We have installed a shield system on several storeys of the Bonn waste management company.

+ Pictures

Church of St. Martin Bonn: stainless steel wire system and netting

Older structural substance can also be effectively protected: a stainless steel wire system was attached to the guttering here.

+ Pictures

Shopping centre Regensburg: stainless steel wire system

We protected the windows of a large shopping centre in Regensburg with a three- and five row stainless steel wire system. In particular, the full protection of the windows (five rows) prevents the pigeons from nesting on the window sills.

+ Pictures

Inner Courtyard Dresden: Stainless Steel Wire System

Pigeons like to populate city centres. This was also the case in the centre of Dresden, where we protected the parapets of a new building opposite the Church of our Lady with several rows of stainless steel wire system.

Wire systems have a very high efficiency and are, not least because of the good visual effect, suitable for repelling birds.

+ Pictures

Goettingen Hospital: Wire-system

Especially for hospitals hygiene is of extreme importance. Bird and pigeon droppings must be prevented with all means.

At the Goettingen hospital, stainless stell pipes are being used as snow guard. To prevent pigeons from roosting, we have installed a special stainless stell wire-system.

Beneath the roof pigeons also roosted directly on the tiles, since this place is best sheltered from the wind. We have installed PE-netting Antec, glueing it directly on the tiles.

Stainless stell spikes on roof ridges and ledges make bird control on this building complete.

+ Pictures

Ubierring Cologne: Stainless steel wire system and spikes

At this listed building at Ubierring in Cologne, we have installed a stainless stell wire system on gutters and ledges. The system was even painted in order to best integrate it into the facade of the building.

On other ledges and gutters we have used stainless steel spikes to protect them.
